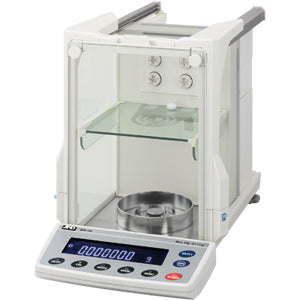

A&D BM-20 - 22g x 0.000001g Ultra Micro Balance
The A&D BM-20 Ultra Micro Balance is the perfect tool for handling trace quantities of valuable substances with precision. Featuring a built-in fanless ionizer and automatic response adjustment, this balance simplifies microgram measurements in the lab.
Why You’ll Love It
- Built-in fanless Ionizer for static control
- Large Weighing Chamber for convenience
- Automatic Filter Response Adjustment for stable results
- Automatic Self Calibration for accuracy
- GLP/GMP/GCP/ISO Compliant for regulatory requirements
- Removable Separation Plate for versatility in weighing
FAQ
Is calibration easy with the A&D BM-20 Ultra Micro Balance?
Yes, calibration is automated and can be done with a single keypress.
How does the automatic response adjustment function work?
It uses environmental data from built-in sensors to compensate for balance characteristics.
What makes the A&D BM-20 suitable for microgram measurements?
The Ion Series provides performance and standard accessories for accurate microgram readings.
A&D BM-20 - 22g x 0.000001g Ultra Micro Balance
A&D BM-20 lets you handle with confidence even trace quantities of valuable or degradable substances. Critical to precision weighing is static control, which is why the direct current fanless ionizer is standard on all models.
Sample weighing is at the centre of many laboratory processes, and the A&D Ion Series provides the performance, and features, standard accessories to bring real convenience and efficiency to your lab. Automatic response adjustment function uses environmental data from built-in sensors, to compensate for the balance’s characteristics to deliver fast and stable results.
Calibration is also automated and always available with a single keypress. A range of accessories adds extra convenience.
The BM-20 microbalance has the performance and standard accessories to simplify microgram measurements. The Ion Series now makes microgram ( µg ) measurements accessible to all researchers and offers a real choice in microbalances.
- Built-in fanless Ionizer Standard
- Large Weighing Chamber
- Automatic Filter Response Adjustment due to drafts and/or vibration
- Automatic Self Calibration due to temperature changes
- GLP/GMP/GCP/ISO Compliant
- Removable Separation Plate for Weighing of Taller Objects
- Clear Metal Coated Anti-Static Glass
- AD-1688 Data Logger Included
Specifications:
| Max Capacity | 22g |
| Readability | 0.001mg |
| Pan Size | 25mm (50mm, 95mm for weighing filters) |
| Minimum weighing value | 0.001mg |
| Repeatability | 0.0025mg (for 1g) |
| Linearity | ±0.010mg |
| Measurement Units | g, mg, oz, ozt, ct, momme, dwt, GN, tael, tola, |
| Display Modes | pieces (counting mode), % (percent mode), Specific gravity |
| Counting mode | Minimum unit mass = 0.1mg / Number of samples = 10, 25, 50 or 100 pieces |
| Percent Mode | Minimum 100% ref. mass = 10.0 mg / Minimum 100% display = 0.01%, 0.1%, 1% (depends on the reference mass stored) |
| Internal Memory | 200 sets weighing data / 100 sets with date &time / 50 sets of calibration data |
| External Data Logger | Store up to 5,000 weighing results with date &time to AD-1688 (standard) |
| Data Output | GLP / GMP / GCP / ISO compliant. Outputs: balance manufacturer, model, s/n, balance identification number, date, time of calibration, mass used, and space for a signature. |
| Standard Interface | RS-232C, Quick USB, External key plug for optional footswitch (SW:128) |
| Calibration | Internal - Auto Self Calibration |
| Internal Calibration | Motor-driven internal calibration |
| External Calibration Masses | 20g, 10g, 5g, 2g, 1g |
| Sensitivity Drift (10 °C - 30 °C) | ±2ppm/°C (when automatic self-calibration is not used) |
| Stablization Time | 10s |
| Operating Temperature | 5°C to 40°C (41°F to 104°F), 85%RH or less (non-condensing) |
| Product Dimensions | 259 x 466 x 326mm |
| Weight | 10kg / 22lbs |
| Breeze Break | 252 x 140 x 165mm |
| Draft shield | Yes |
| Ionizer electrode pin life | Approx. 10,000 hours of continuous use. (User replaceable) |
| Power consumption | Approx. 30 VA (supplied by the AC adapter) |
| Box Includes: |
|
