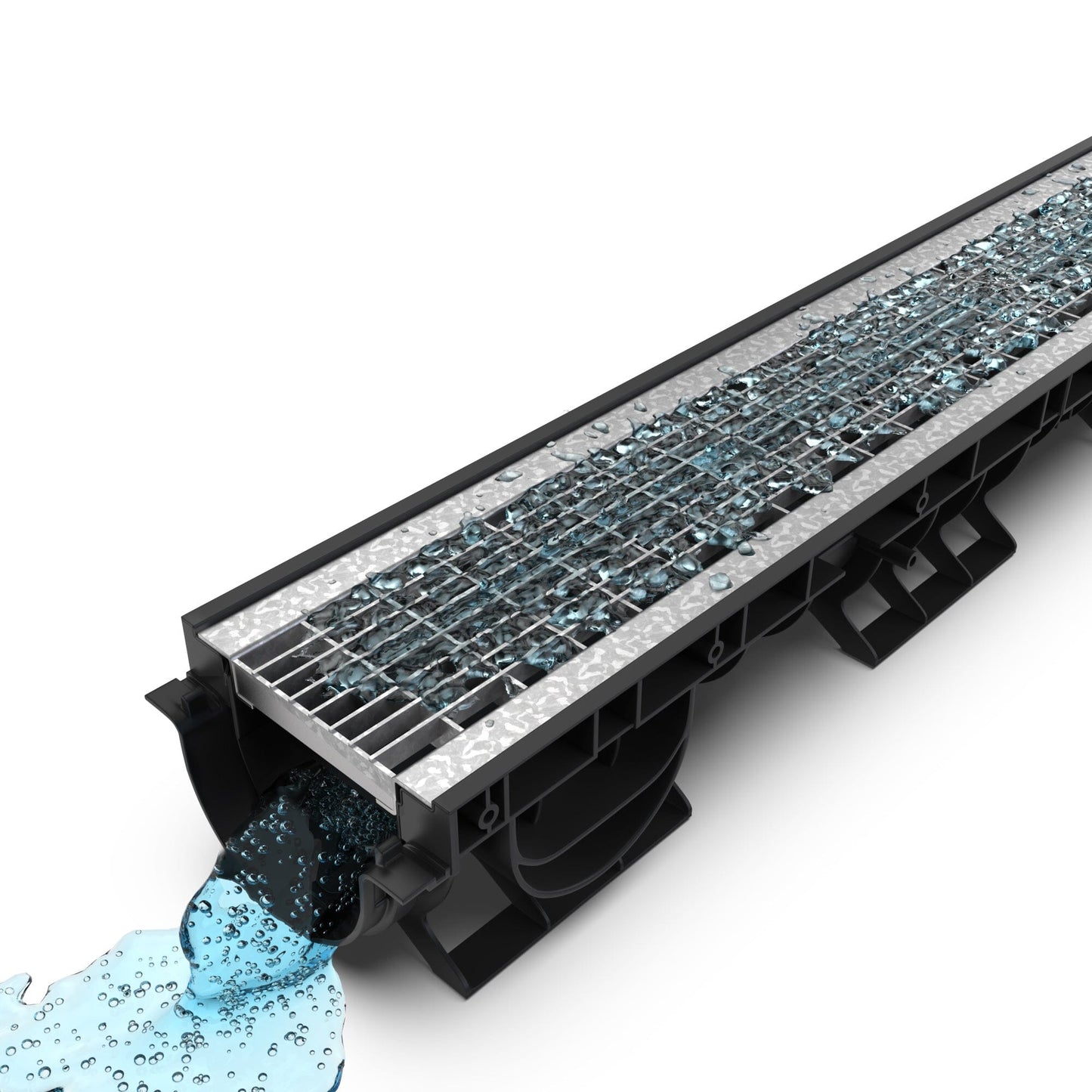

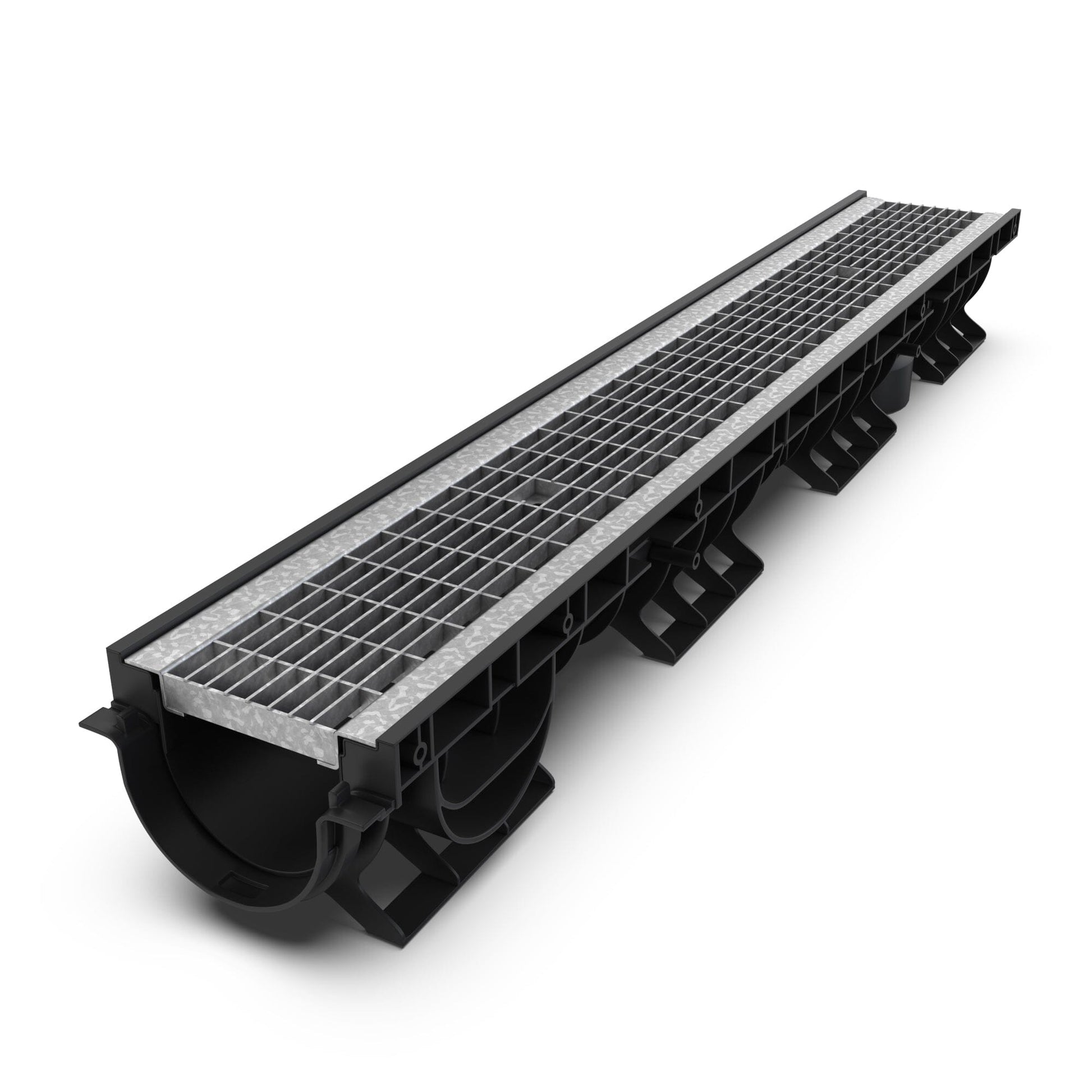

4" Plastic trench drain (BASE 100P), galvanized grate ADA, B class
Upgrade your drainage system with our high-quality plastic trench drain. Vodaland offers a versatile 4" solution that combines easy installation with a durable design.
Why You’ll Love It
- 4" internal width (6" external) for efficient water flow
- B-class galvanized steel grate for residential vehicle traffic
- Versatile pre-slope or non-sloped system options
- 90-degree connection cut-out for easy corner turns
FAQ
What material is the trench drain made of?
Our trench drain is made of PPE plastic with a galvanized steel grate.
Can I connect multiple units together for a longer system?
Yes, you can connect multiple units to create the length you need.
Are outlet end caps included with the purchase?
Outlet end caps are sold separately for your convenience.
Vodaland’s 4” plastic trench drain (BASE 100P) has a 4” internal width (6” external), and a length of 3.28ft (1 meter). Customers can choose between a 1% pre-slope or a non-sloped system. The pre-slope systems come in multi-channel bundles up to your required length (maximum 13 meter lengths). The non-slope systems are sold per unit but can be connected together to create a system with whichever length you require.

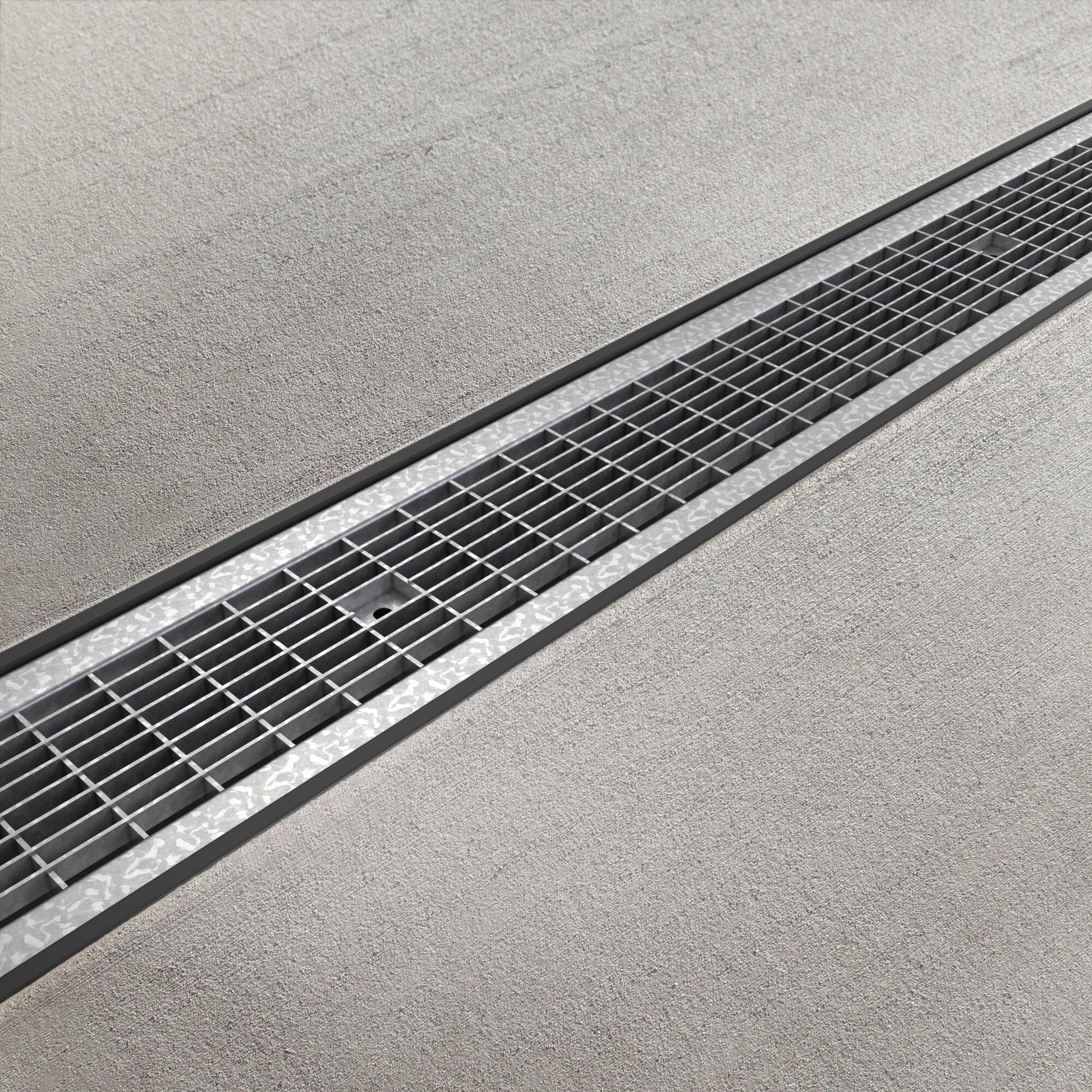

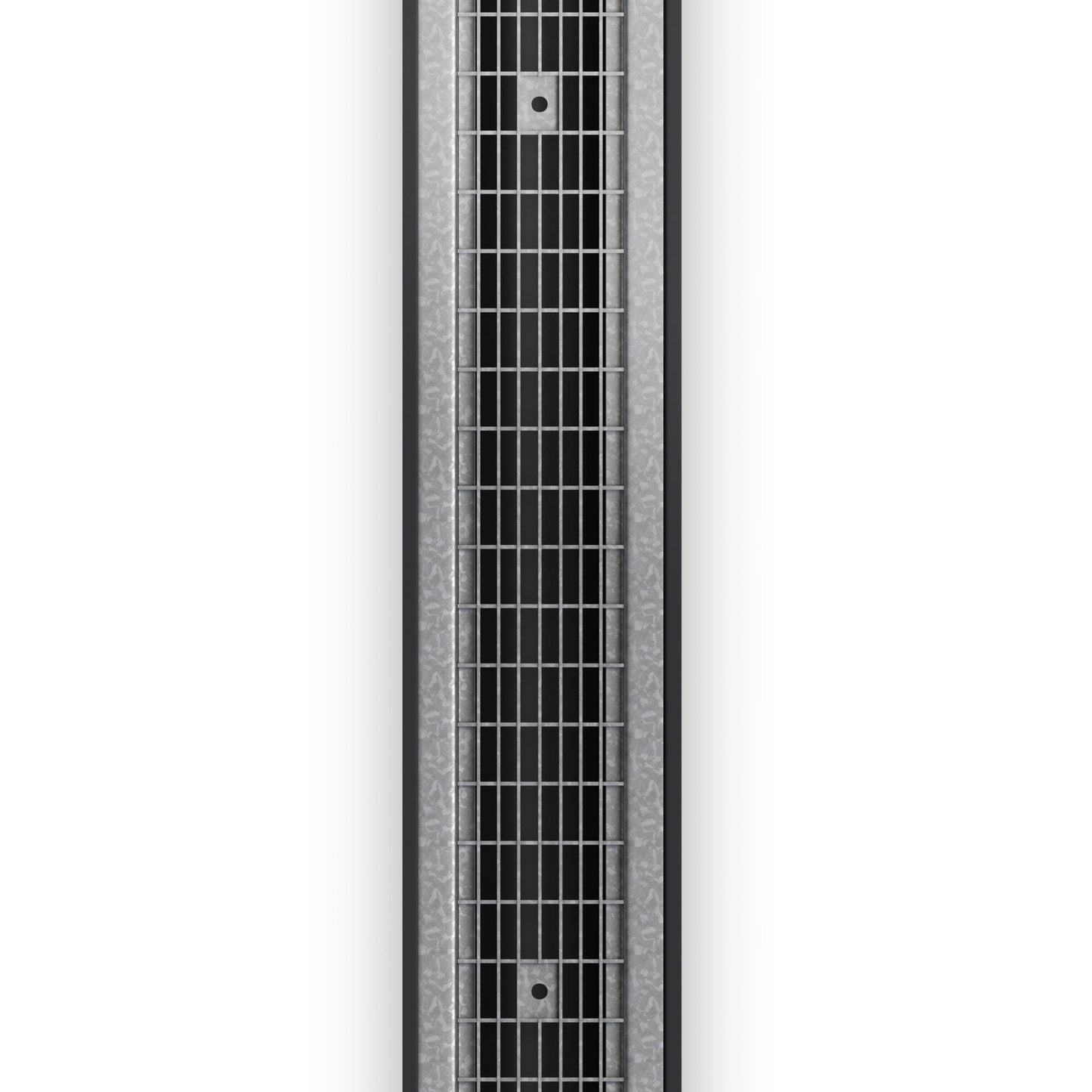

This trench drain uses a B-class galvanized steel grate. The B load class is designed to withstand residential vehicle traffic.
Each channel features a 90-degree connection cut-out option on each side to allow for a corner 90-degree turn without the need for additional parts.

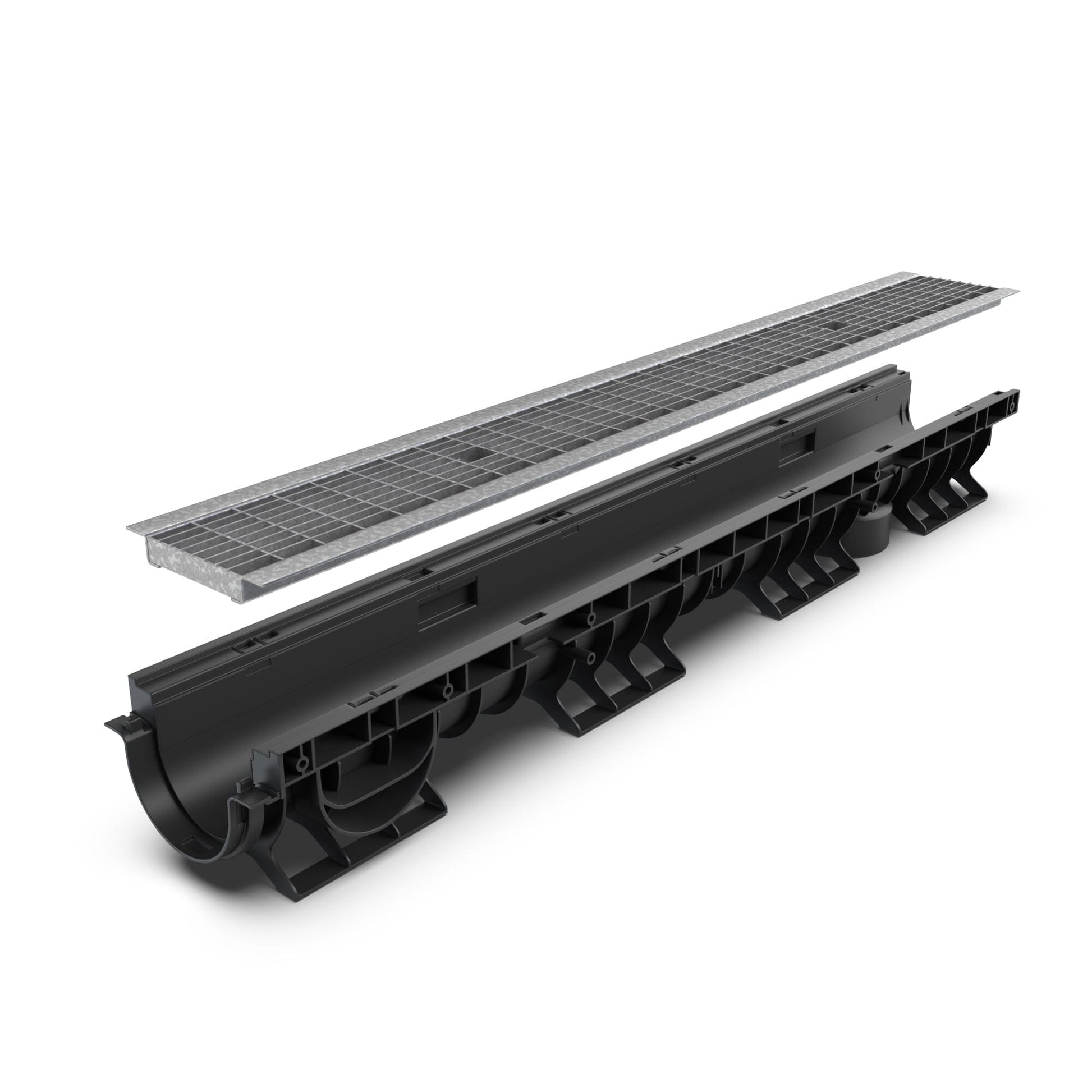

Every 1m length purchased comes with 1 plastic channel, 1 grate, 2 fasteners, and 2 screws. Closed and outlet end caps are sold separately.
PARAMETERS
Article ................ BASE100P-GGM
Material ............. PPE Plastic / Galvanized Steel
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... B - Residential Vehicle Loads
CHANNEL OUTLETS
Bottom outlet: Every channel features a 4” bottom outlet for connection with piping. This outlet comes closed and must be cut out for use.
Outlet sizing: Our outlets are sized to fit European sized piping. To connect with North American sized piping, you will require either one of Vodaland’s plastic pipe adapters (sold separately), or a rubber coupling (sold elsewhere).
IF YOU REQUIRE A SYSTEM THAT IS MORE THAN 13 METERS IN LENGTH OR NEED A COMBINATION OF PRE-SLOPE/NO-SLOPE CHANNELS, PLEASE CALL A VODALAND REPRESENTATIVE.
