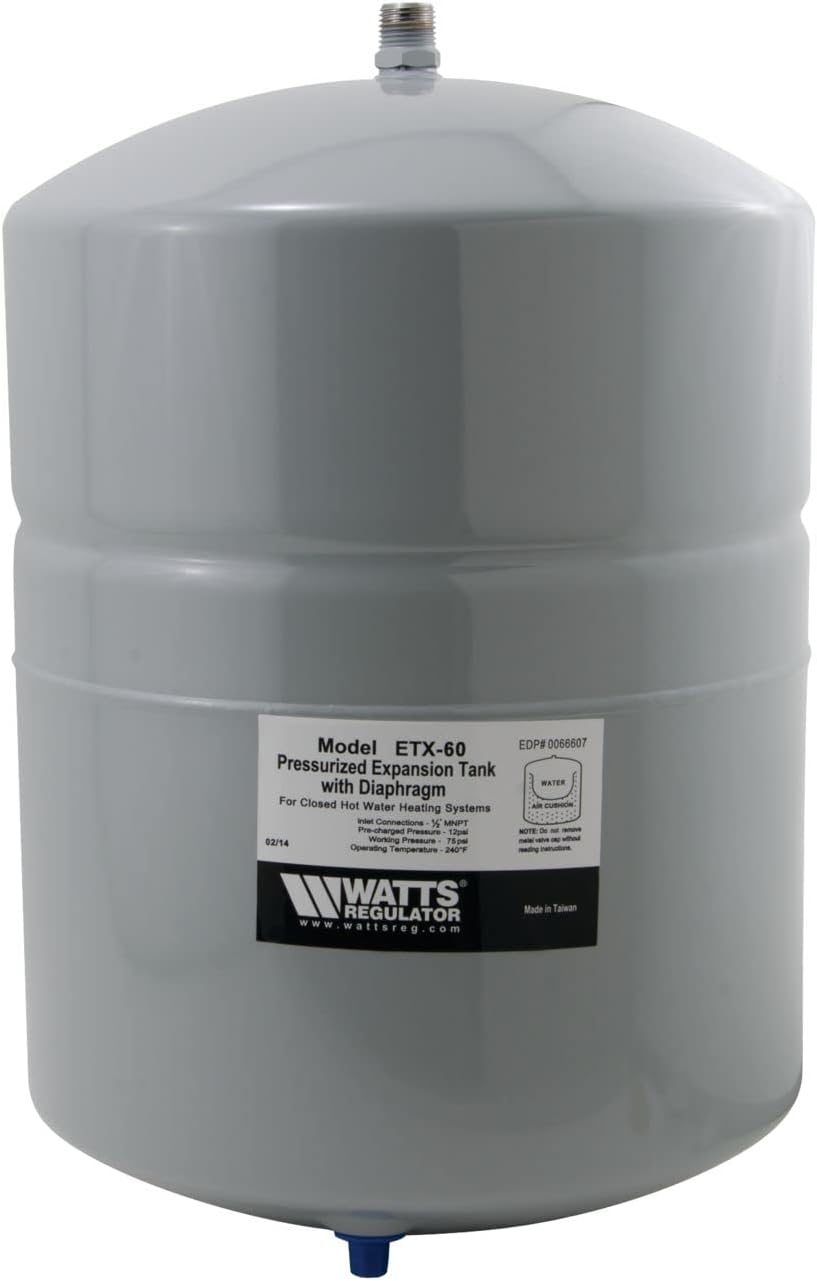

Watts ETX-60 6 Gallon Non-Potable Expansion Tank for Closed-Loop Systems
Enhance your closed-loop system with the Watts ETX-60 6 Gallon Expansion Tank. Designed to control thermal expansion and maintain system pressure, this tank is a must-have for commercial and residential setups.
Why You’ll Love It
- Steel construction for durability
- Precharged to 12 psi for easy installation
- Rugged flexible butyl diaphragm for long-lasting performance
- Mounts to supply piping for seamless integration
- Maintains system pressure below relief valve setting
FAQ
What is the tank volume of the Watts ETX-60 Expansion Tank?
The tank volume is 6.0 gallons.
What is the maximum working pressure of the tank?
The maximum working pressure is 75 psi (5.3 bar).
Is the tank precharged for immediate use?
Yes, the tank comes precharged to 12 psi for easy installation.
This non-potable water expansion tank is designed for use in commercial and residential closed loop hydronic heating system piping to control the thermal expansion of hot water and maintain system pressure below the relief setting of the relief valve. This carbon steel tank is pre-charged at 12 psi, tank volume is 6.0 gallons and features a durable expansion membrane that prevents contact of the water with the air in the tank. This rugged butyl diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system. This tank is made of carbon steel with epoxy finish, mounts to supply piping, 1/2 inch MNPT system connection and a 0.302-32 inch charging valve connection (standard tire valve) to facilitate on-site charging of the tank to meet system requirements. The maximum working pressure is 75 psi (5.3 bar).
Product Features:
- Steel construction
- Inline and free standing models
- Rugged flexible butyl diaphragm
- Precharged to 12 psi
Product Specifications:
| Air Precharge | 12 PSI |
| Air Valve | Yes |
| Bladder Material | Butyl |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Color | Gray |
| Diameter | 11 3/8 IN |
| EAN | 098268219364 |
| Electricity Required | No |
| Fuel Gauge | No |
| GDS Status | Registered |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 15 MM |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Liner Material | Does Not Apply To Product |
| Maximum Operating Temperature-Fahrenheit | 220 |
| Maximum Working Pressure-PSI | 75 |
| Mount Type | Pipe |
| Orientation | Vertical / Horizontal |
| Part Number | 0066607 |
| Series | ETX |
| Stand Included | No |
| Tank Acceptance | 3 Gallons at 12 PSI |
| Tank Height | 17 3/16 IN |
| Tank Material | Carbon Steel |
| Tank Volume | 6 Gallon |
